Brand Name : | Cyclenpo |
Model Number : | CYFE4850-1636 |
Certification : | CE ROHS UN38.3 MSDS |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 10000pieces |
Delivery Time : | 2~4weeks for samples; 4~6weeks for mass production |

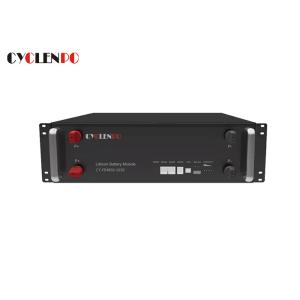

48v Lithium Lifepo4 Battery Box for Indoor Communication Base Station
The CY Battery-Box is a lithium battery unit with battery
management system (BMS) for usage with an
external inverter. The flexible battery systems in the two
versions: Battery-Box and Battery-Box pro
provide maximum safety, life span and performance, which makes them
the perfect batteries for all applications.
Battery-Box Pro 2.5-12.5 consists of the battery modules with 2.56
kWh usable capacity each. Up to 5
modules can fit into one cabinet, and up to 8 cabinets can be put
into parallel connection. Thus capacities from
2.56 to 81.92 kWh can be chosen individually in 2.56 kWh steps.
Specification and Type | Battery-Box Pro5.0 |
Battery module | CY-FE4850-1636 |
Usable Energy | 5.12kWh |
Net Weight | 105kg |
Max Output Power | 5kW |
Peak Output Power | 10.24kW,30S |
Nominal Voltage | 51.2V |
Operating Voltage Range | 43.2~56.4 V |
Communication | RS485 , RS232 |
Dimensions (L/H/W) | 600 x 883 x 510 mm |
Protection Level | IP20 |
Warranty | 3 years |
Operating temperature | -10 °C to +50°C |
Certification & Safety Standard | TUV (IEC62619) / CE / RCM / UN38.3 |
Scalability | Max. 32 B-Plus L 2.5 in parallel / 81.92 kWh |
Compatible Inverters | GOODWE / Victron / Sungrow / Selectronic / Solis, more brands to be announced |
Application | ON Grid (Self consumption / ON Grid + Backup / Backup) |
![]() |
