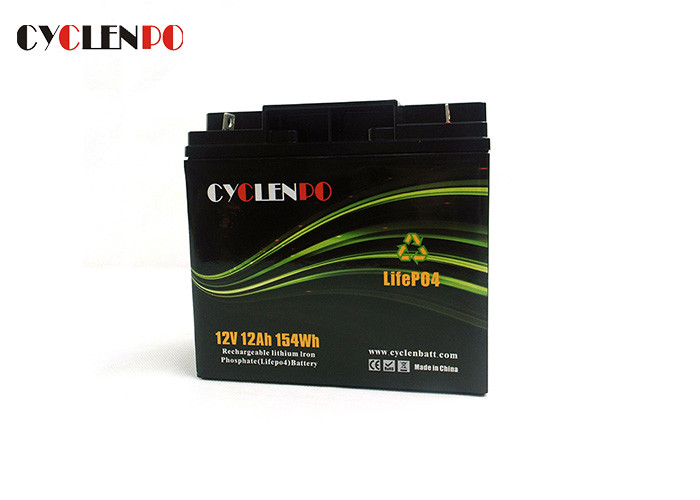

Lithium Battery 12V 12Ah Lifepo4 Battery for Solar Street Light and
LED Light
Safety Performance
Our battery has passed the following test:
- High and low temperature characteristics
- overcharge protection characteristics
- over-discharge protection characteristics
- short-circuit protection characteristics
- constant humidity and temperature characteristics
- drop test.
This Lifepo4 12v 12ah battery module is mainly used for led lighting,solar street light,alarm
system,mini ups
and other lead acid replacement.
NO | Item | General Parameter | Remark |
1 | Model | 18650 3.2Ⅴ1100mAh/20Ah/40Ah/60Ah | Single |
2 | Casing material for single cell | Nickel plated steel | |
3 | Standard capacity(0.2C5A) | 12Ah | |
4 | Rated voltage | 12.8V | 3.20V(Work voltage:3.20V) |
5 | Max.Charge voltage | 14.6V | 3.65V(Single Ave. charge Voltage) |
6 | Cut-off voltage | 10V | 2.50V(Single Ave. Discharge Voltage) |
8 | Standard charge current | 6A | 0.5C |
9 | charging Time | About3h | |
10 | Max Continuous discharge current | 6A | 1C |
11 | Peak discharge current | 24A | 2C |
12 | Battery dimension | 180*76*167mm±1mm | |
13 | (Approx.)Total weight(Approx.) | About 2kg | |
14 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 20mΩ | |
15 | (CC/CV)
Charge method (CC/CV)
| Standard | 0℃~45℃ |
discharge | -20℃~45℃ |
storage | -20℃~45℃ |
Why Choose US
1. Provide OEM&ODM services with various designs.
2. Complete production lines, reliable quality, factory direct
price.
3. 100% test before shipping, fast delivery with solid package.
4. Timely and professional pre-sales service and after-sales
service.
FAQ
1. Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the
best quote in 24 hours after we get
the product specifications such as voltage capacity application
etc.
2. How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We
will make the big order exactly
the same as you request. And we offer 1 year warranty for small
battery packs, 2-3 years for battery
packs of large capacity.
3. What about the lead time for mass production?
It depends on your order quantity.Normally 2-5 days if we have
sample in stock, 5-10 days for
newly produced samples.10-20 day for big order.
4. What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small
quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
5. What is your term for payment?
We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali
Express,Cash,etc.
